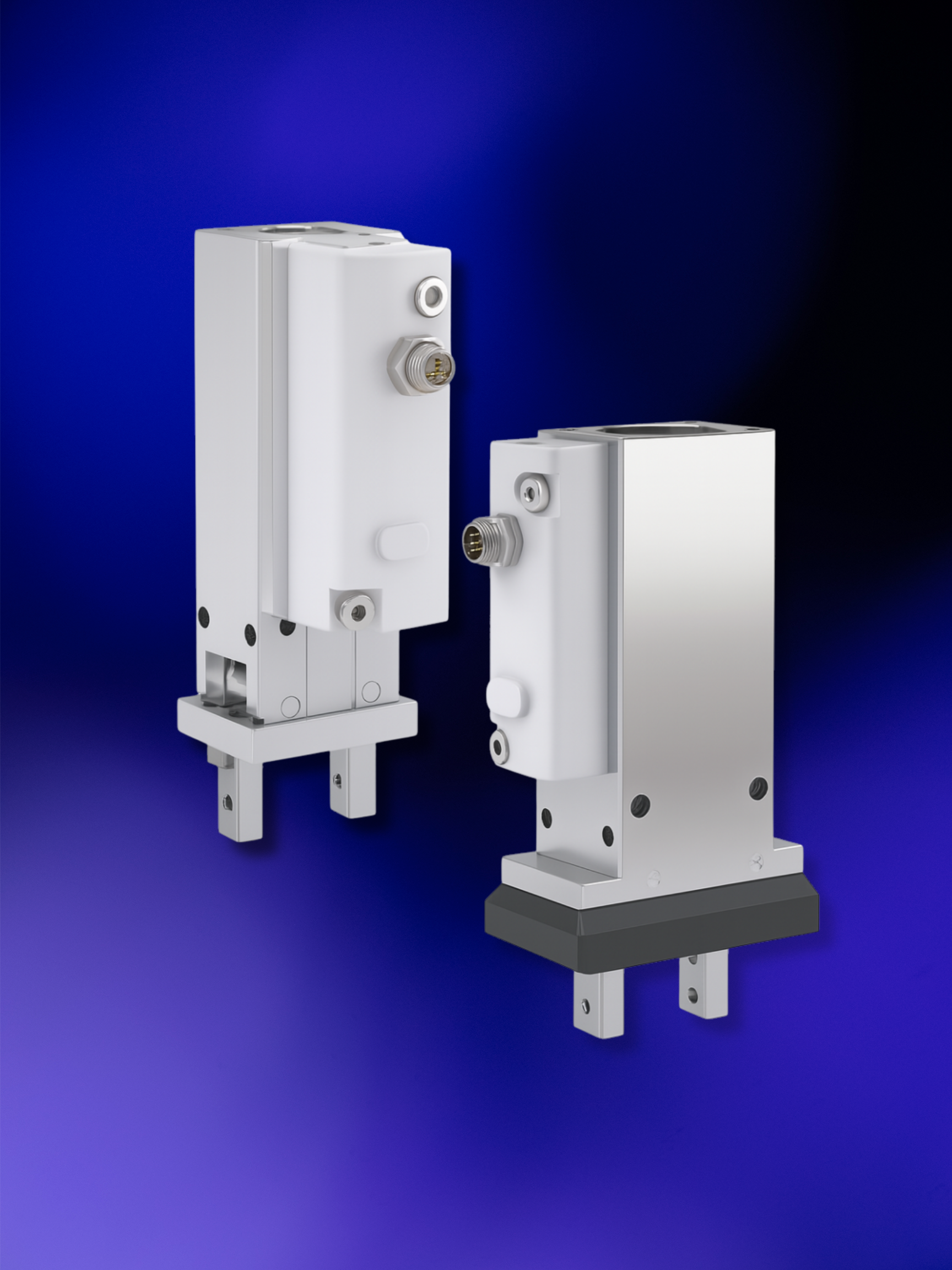

LSHM-HP2 Linear Slide Hand CKD

The CKD LSHM-HP2 Linear Slide Hand is a parallel linear gripper equipped with an integrated LVDT sensor, designed to measure workpiece dimensions with high accuracy. Its ability to monitor deformation and wear through changes in output enables predictive maintenance, increasing operational reliability and overall system efficiency.

High precision
Repeatability of ±0.02 mm.

Analog output linearity

- With correction adapter: FS ±0.5%

- Without correction adapter: FS ±3%

Integrated sensor structure
First-in-class design featuring a highly durable LVDT sensor resistant to vibration and impact.

Selectable output options
Supports a new switch output adapter and IO-Link adapter for enhanced system flexibility.

Industrial environmental resistance
IP65-rated amplifier with protective rubber cover to guard against particles and water droplets.

Predictive maintenance capability
Monitors jaw and finger deformation and wear to prevent equipment damage and unplanned downtime.

Finger options
Selectable from four different finger types to suit a wide range of applications.
Lead time
Subject to availability and order confirmation.

Technical support included
Installation assistance and operator training provided.
